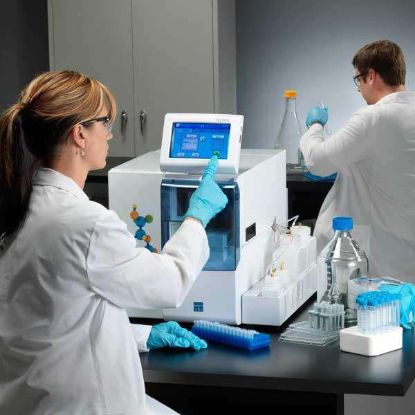

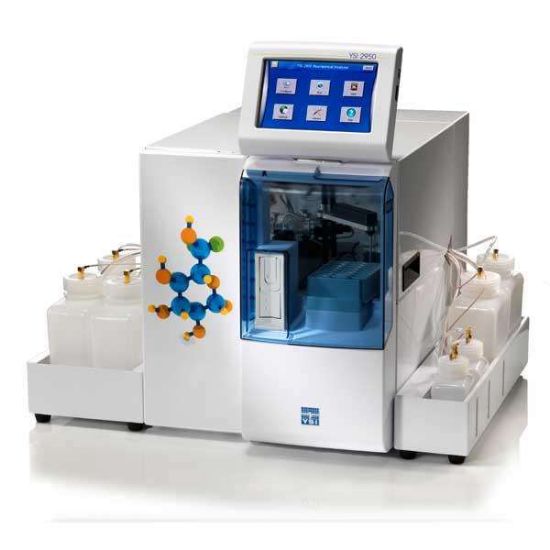

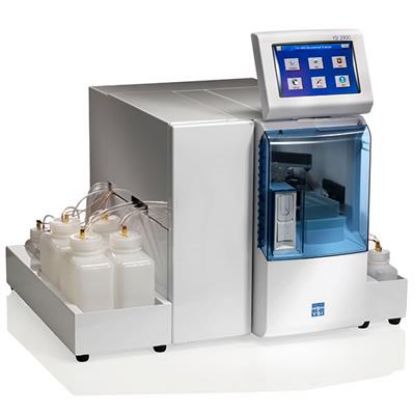

2950D-3 - 2950 Analyzer with two Biosensor Modules and one ISE Module

BenchtopYes
CertificationsETL, CE, RoHS
Compliance21 CFR, Part 11, GAMP® 5
Connectivity / CommunicationsEthernet, USB
Graphic DisplayYes
Measurement RangeGlucose: 0.05-25 g/L, Lactate: 0.05-2.70 g/L, Glutamate: 15-1460 mg/L, Glutamine: 30-1169 mg/L, Ammonium: 10-500 mg/L, Potassium: 20-1000 mg/L, Glycerol: 0.75-40 g/L, Xylose: 0.5-30 g/L, Choline: 5-450 mg/L, Hydrogen Peroxide: 3-300 mg/L, Sucrose: 0.1-25
MemoryYes
Operating Temperature15-35°C
Parameters MeasuredGlucose, Lactate, Glutamate, Glutamine, Ammonium, Potassium, Glycerol, Xylose, Choline, Hydrogen Peroxide, Sucrose, Ethanol, Methanol, Lactose, Galactose
Power100-240 VAC, 50-60 Hz
PrecisionApplication specific, typical CV <2%
Unit of Measuremmol/L, %, mg/L, mg/dL, g/L
Warranty1 year
Overview

The key to generating analyte-specific results in 60 seconds or less is YSI’s innovative biosensor technology.

The unique fluidics and chamber design resist clogging – even at high cell densities.

Fully modular and with a range of upgrades available, the YSI 2950 Series feature an intuitive graphical user interface and a touch screen display, making 2900 series analyzers the easiest to use and most cost effective way to measure the following chemistries in a wide range of matrices: Glucose, Lactate, Glutamine, Glutamate, Ammonium, Potassium, Xylose Ethanol, Methanol, Sucrose, Galactose, Lactose, Choline, Glycerol, Hydrogen peroxide

Features:

  • Icon-driven user interface with touchscreen - easy to learn
  • Data download options - save data on a memory stick, send it over the network or access it in a database anytime
  • Onboard training videos - minimizes operator learning curve
  • Proprietary Enzyme Electrode - fast, accurate and analyte-specific results
  • Short, wide aspiration path with proprietary chamber measurement system - highly resistant to clogging, handles the highest cell counts without pretreatment
  • Uses biological separation technology - no hazardous chromatography solvents
  • Slim modular design - easily expand analytes or chemistries, and multiple units use much less bench space
  • Connect with OPC, ethernet, USB, RS232 to computer or other instruments and systems - ease and flexibility of connection
  • Results automatically saved in searchable database - multiple convenient methods for data retrieval
