The AMS Alliance FUTURA 3 Continuous Flow Analyzer provides a complete and reliable solution for testing different parameters in sea water, drinking water, wastewater, environmental samples, soil, food, beverages, tobacco, and many other matrices. The testing is done automatically, including inline sample preparation. FUTURA 3 streamlines your laboratory operations by automating complex and time-consuming manual sample preparation methods, such as inline distillation, digestion or extraction.
FUTURA 3 also includes a range of autosamplers to match your laboratory’s current and future needs, as well as automated shut down capability, allowing it to provide unattended, reliable operation, and overnight testing. Its flexible configuration allows simultaneous operation of up to 14 independent channels from a single workstation.
Features
- Full Automation: programmable start-up and shut-down, preparation of standard solutions, pre- and post-dilution of off-scale samples, and automatic rinsing

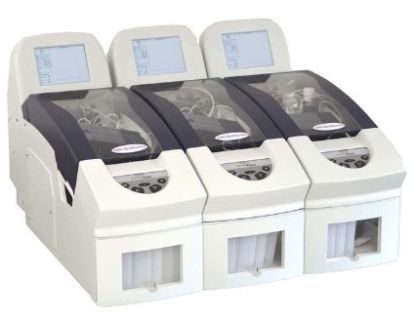

- High Modularity: integrated or combined instruments up to 14 channels, multiple flow cells, micro or macro flow
- High Performance: high throughput, up to 120 samples/hour with auto-sampler, full automation of routine and complex chemistries
- Advanced Software: user-friendly analytical software, EPA / ISO methods available for different matrices
- Compliant with reference methods: ISO, EPA, AFNOR, APAHA, OIV, CORESTA
Benefits
- Modularity and high throughput improve laboratory productivity
- Sophisticated design and software dedicated to CFA technology guarantees the lowest level of detection and is comparable to reference methods
- Simplicity and advanced automation reduce operator intervention time
Laboratories use FUTURA 3 to perform tests on important parameters in water, (drinking, waste, surface, sea and ground water), soil, tobacco, and beverages.
The FUTURA 3 console is capable of running a variety of analytical methods using different Continuous Flow Analysis techniques. From simple colorimetric assays to complex in-line distillations and digestions, users can pick from a library of both micro-bore and macro-bore CFA methods.
To perform a Continuous Flow Analysis, the FUTURA 3 console must be combined with an autosampler that will receive all the samples, and, if required, a series of sample preparation systems based on the chosen method. All external modules can be controlled by the FUTURA software using the Auto Module (optional).
Sample preparation and operation are fully automated, including those for the most complex chemistries; dialysis, distillation, UV digestion, injection, dilution, mixing, incubation and liquid/liquid extraction - all Inline, all 100% automated. Plus, the fully automated process includes programmable start-up and shut-down, preparation of standard solutions, pre- and post-dilution of off-scale samples, and automatic rinsing.

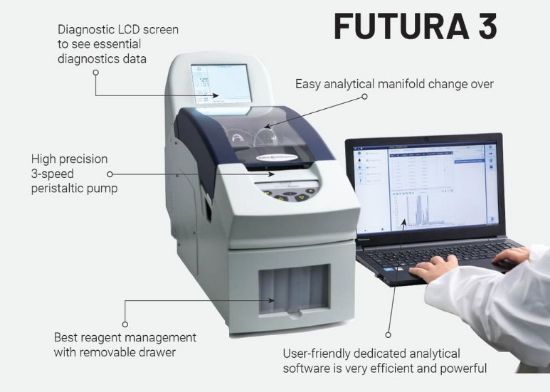

Each FUTURA 3 console integrates a high precision 3-speed peristaltic pump (medium, fast (startup and washout more speed) and slow (for low consumption of reagents)), a removable drawer for reagents, an analytical manifold, a heater, a detector, and a built-in display for the presentation of essential diagnostics data.
The FUTURA 3 analytical software is dedicated to the CFA technology: it prepares calibration standards, runs samples and quality controls, dilutes any off-scale samples, prints reports and QC charts, exports data to LIMS, washes out the manifold and shuts down.
User-friendly, efficient and powerful, the software has been designed to simplify your day-to-day operation. It runs the analysis of all parameters on each channel (up to 14 channels), and drives auto-samplers and accessories for automatic sample preparation.
During analysis, the software monitors the system’s vital signs (heating bath temperature, voltages, detector outputs) and alerts the user to any problem.
