The compact M1 Class HPLC Pump consists of single-headed, positive displacement piston pumps that deliver high-performance and precision at an affordable price. Superior to Gear, Diaphragm, and Peristaltic pumps, the M1Class provides greater performance at an equivalent cost to lesser functioning products.
Applications include precise chemical metering, dispensing, and specific HPLC separations. Standard fluid path materials are Stainless Steel. With 10 mL/min, 40 mL/min, and 100 mL/min versions, reaching pressures up to 2,500 psi, these pumps capture the majority of typical laboratory fluid transfer applications.

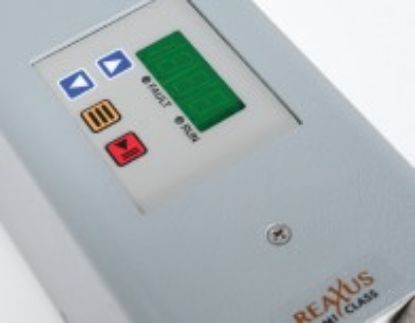

Features include interactive keypad control, Pulse Dampener and Outlet Filter, RS-232 Serial and Micro USB 2.0 ports for complete PC control and status, as well as hardware for laboratory stand mounting.
Having the smallest possible footprint for a high pressure pump, the M1 Class will easily integrate into any laboratory or industrial environment.

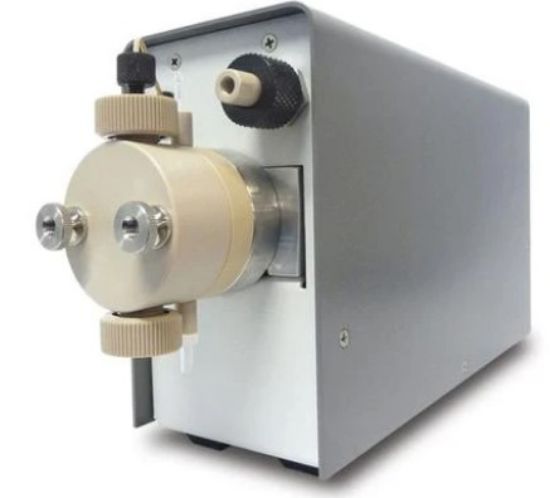

ReaXus M1 Class 10 mL PEEK Single Piston Pump with Eccentric Drive:
- Flow Rate: 00.00 to 10.00 mL/Minute
- Maximum Pressure: 2,500 psi
- Material: PEEK Fluid Path
- Automatic Piston Wash: Yes
- Dampener: No
- Piston Seal: Aqueous/Standard (Fluoropolymer Energizer)
- Fitting Package for 1/8 Inch and 1/16 Inch O.D. tubing
Teledyne LABS ReaXus reciprocating pumps covers a broad range of application needs, ranging from 5 mL/min to 300 mL/min and up to 6,000 psi.
Whether you need low pulsation or are working with hazardous materials, the ReaXus line has an option for you. The single piston models are targeted towards moving material or providing pressure. The dual piston models are focused on continuous processing applications where a steady flow of material is important.
The ReaXus product line is low maintenance and requires no calibration like other styles of pumps, saving your organization time and money.
