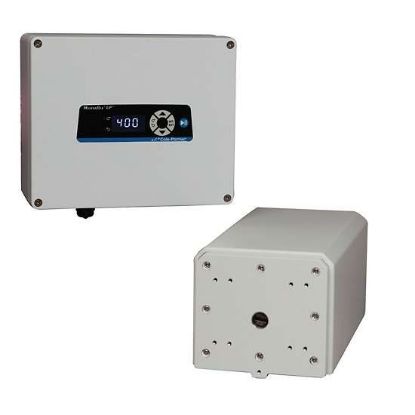

- Modular drive lets you place motor and controller where convenient—ideal for limited or awkward spaces
- Minimum flow rate is 0.04 LPM (0.01 GPM); maximum flow rate is 19 LPM (5.0 GPM) with the I/P High-Performance pump head or 26 LPM (6.9 GPM) with two stacked I/P Easy-Load or Standard pump heads

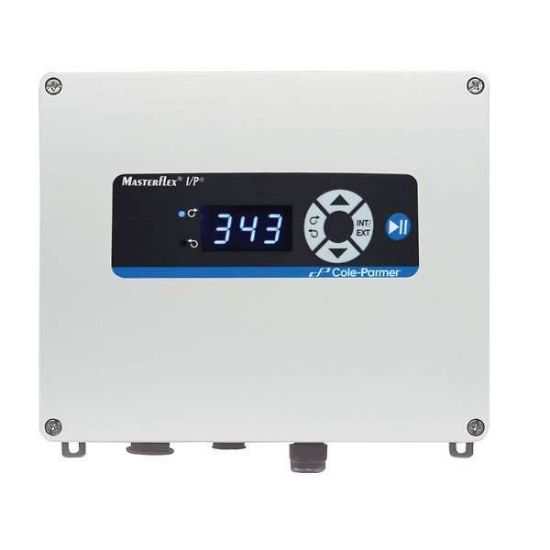

- Three-digit LED display shows motor rpm—confirm speed setting at a glance
- Membrane keypad for easy up-front control of speed, direction, and start/stop
- Reversible motor—purge tubing before or after pumping; pump fluid in either direction
- LED indicators confirm motor direction
- Powerful motors let you stack two pump heads for increased flow rates and for multichannel applications
- Separate speed and power (on/off) control—maintain speed setting while turning pump on/off
- ±0.25% speed control; meter and transfer fluids with accuracy and repeatability
- Remote control capabilities via weather-resistant connection on controller
- – Speed control input
- – Pump direction (CW/CCW) via open collector or contact closure
- – Start/stop via open collector or contact closure
- Washdown powder-coated aluminum controller housing is NEMA 4X (IP66) rated; drive housing is powder-coated steel, NEMA 4X (IP66) rated
- 6-ft (1.8-m) cable connects drive and controller; use optional extension cable 07557-51 to extend distance to 15 ft (4.5 m)
I/P modular drives feature reversible pumping and allow you the flexibility to separate the motor from the controller. These accurate modular drives have powerful motors, speed display, and ±0.25% speed control for precise flow regulation—ideal for metering and critical transfer applications.
Whats Included:
6-ft (1.8-m) line cord with IEC 320/CEE22 socket. These models are shipped with country-specific plug/cord set; please specify ultimate destination when ordering.
