- Obtain UV-A and UV-C light measurements from a single meter
- Exclusive photo sensors with cosine correction filters protected in a rugged metal housing Thermocouple input lets you connect a Type J or K probe for temperature measurements
- Log light measurements onto an SD card or stream readings directly to your PC
- Easy-to-read backlit LCD—even in low-light conditions

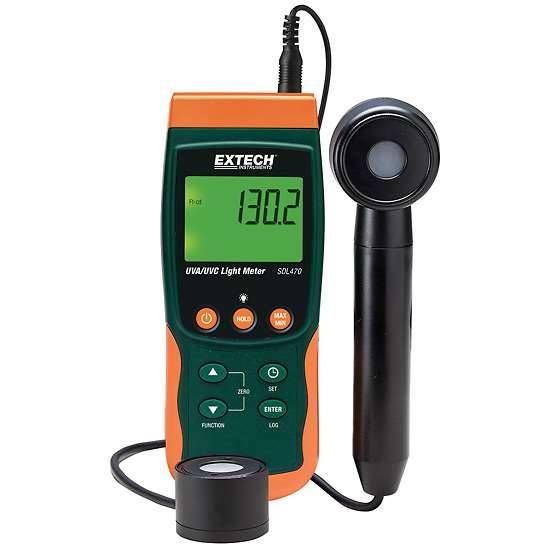

This versatile, dual-scale, UV light meter is ideal for monitoring blue light welding, UV sterilization, ink curing, photo-resist exposure, and adhesives and coatings. Two probes are included to cover the UV-A (365 nm, blacklight) and UV-C (254 nm, sterilizing) wavelengths—simply chose the probe for the wavelength you wish to monitor. Plus, connect a Type J or K thermocouple probe with mini-connector to simultaneously obtain temperature measurements.
Additional features include adjustable sampling rate from 1 to every 3600 seconds, a UV Zero feature to obtain relative measurements, and max/min. Data can be stored in up to 99 folders, each folder having a 30,000 measurement capacity. Readings are time and date stamped and transfer to your PC in Excel® format. The meter can operate on six AA batteries or directly from the universal AC power supply.
ACCURACY:
- Intensity: ±4% full-scale
- Temperature: ±0.4% ±1.8°F/C
RANGE:
- Intensity: 0 to 2 mW/cm2 or 0 to 20 mW/cm2(for both 365 and 254 nm)
- Temperature: Type J: -148 to 2192°F (-100 to 1200°C) Type K: -148 to 2375°F (-100 to 1300°C)
RESOLUTION:
- Intensity: 0.001 mW/cm2
- Temperature: 0.1°F/C
DIMENSIONS: 2.9" x 7.25" x 1.9"
